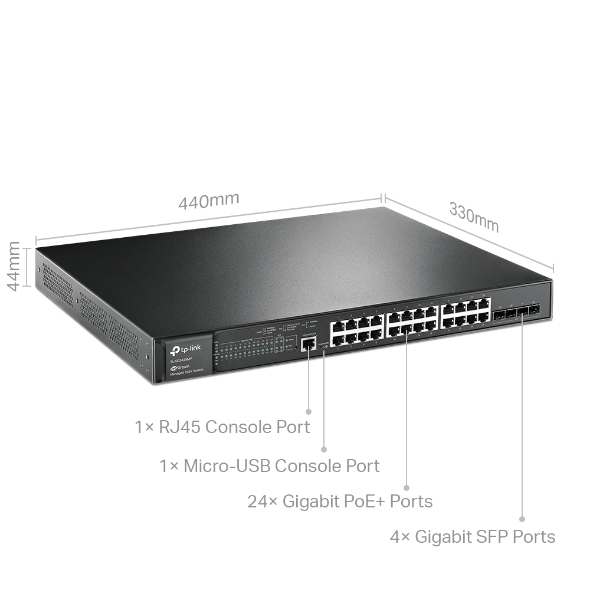

| Interface | 24? 10/100/1000Mbps RJ45 Ports 4? Gigabit SFP Slots 1? RJ45 Console Port 1? Micro-USB Console Port |
|---|---|
| Fan Quantity | 2 |
| Power Supply | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | ? Standard: 802.3at/af compliant ? PoE+ Ports: 24 Ports, up to 30 W per port ? Power Budget: 384 W* |
| Mounting | Rack Mountable |
| Max Power Consumption | ? V1: 463.8 W (110 V/60 Hz) (with 384 W PD connected); 31.0 W (110 V/60 Hz) (no PD connected) ? V2: 465.8 W (110 V/60 Hz) (with 384 W PD connected); 34.4 W (110 V/60 Hz) (no PD connected) ? V3: 442.1 W (220 V/50 Hz) (with 384 W PD connected) ? V4: 460.8 W (110 V/60 Hz) (with 384 W PD connected) ? V5: 456.4 W (110 V/60 Hz) (with 384 W PD connected |
| Max Heat Dissipation | ? V1: 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected); 105.78 BTU/h (110 V/60 Hz) (no PD connected) ? V2: 1589.31 BTU/hr (110 V/60 Hz) (with 384 W PD connected); 117.38 BTU/hr (110 V/60 Hz) (no PD connected) ? V3: 1508.67 BTU/hr (220 V/50 Hz) (with 384 W PD connected) ? V4: 1572.48 BTU/hr (110 V/60 Hz) (with 384 W PD connected) ? V5: 1557.47 BTU/hr (110 V/60 Hz) (with 384 W PD connected) |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | ? V1: 8K ? V2 and above: 16K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Quality of Service | ? 8 priority queues ? 802.1p CoS/DSCP priority ? Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR ? Bandwidth Control – Port/Flow based Rating Limiting ? Smoother Performance ? Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
| L2 and L2+ Features | ? Link Aggregation – Static link aggregation – 802.3ad LACP – Up to 8 aggregation groups and up to 8 ports per group ? Spanning Tree Protocol – 802.1d STP – 802.1w RSTP – 802.1s MSTP – STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect ? Loopback Detection – Port-based – VLAN based ? Flow Control – 802.3x Flow Control – HOL Blocking Prevention ? Mirroring – Port Mirroring – CPU Mirroring – One-to-One – Many-to-One – Tx/Rx/Both |
| L2 Multicast | ? Supports 511 (IPv4, IPv6) IGMP groups ? IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave – IGMP Snooping Querier – IGMP Authentication ? IGMP Authentication ? MVR ? MLD Snooping – MLD v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config – Limited IP Multicast ? Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | ? VLAN Group – Max 4K VLAN Groups ? 802.1Q Tagged VLAN ? MAC VLAN: 30 Entries (12 Entries for TL-SG3428MP V1.0) ? Protocol VLAN: Protocol Template 16, Protocol VLAN 16 ? Private VLAN ? GVRP ? VLAN VPN (QinQ) – Port-Based QinQ – Selective QinQ ? Voice VLAN |
| Access Control List | ? Time-based ACL ? MAC ACL – Source MAC – Destination MAC – VLAN ID – User Priority – Ether Type ? IP ACL -Source IP – Destination IP – Fragment – IP Protocol – TCP Flag – TCP/UDP Port – DSCP/IP TOS – User Priority ? Combined ACL ? Packet Content ACL ? IPv6 ACL ? Policy – Mirroring – Redirect – Rate Limit – QoS Remark ? ACL apply to Port/VLAN |
| Security | ? IP-MAC-Port Binding – DHCP Snooping – ARP Inspection – IPv4 Source Guard ? IPv6-MAC-Port Binding – DHCPv6 Snooping – ND Detection – IPv6 Source Guard ? DoS Defend ? Static/Dynamic Port Security – Up to 64 MAC addresses per port ? Broadcast/Multicast/Unicast Storm Control – kbps/ratio/pps control mode ? IP/Port/MAC based access control ? 802.1X – Port based authentication – Mac based authentication – VLAN Assignment – MAB – Guest VLAN – Support Radius authentication and accountability ? AAA (including TACACS+) ? Port Isolation ? Secure web management through HTTPS with SSLv3/TLS 1.2 ? Secure Command Line Interface (CLI) management with SSHv1/SSHv2 |
| IPv6 | ? IPv6 Dual IPv4/IPv6 ? Multicast Listener Discovery (MLD) Snooping ? IPv6 ACL ? IPv6 Interface ? Static IPv6 Routing ? IPv6 neighbor discovery (ND) ? Path maximum transmission unit (MTU) discovery ? Internet Control Message Protocol (ICMP) version 6 ? TCPv6/UDPv6 ? IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet (v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP |
| L3 Features | ? 16 IPv4/IPv6 Interfaces ? Static Routing – 48 static routes ? Static ARP – 128 static entries ? 316 ARP Entries (512 ARP Entries for TL-SG3428 V2.0 & TL-SG3428MP V2.0) ? Proxy ARP ? Gratuitous ARP ? DHCP Server ? DHCP Relay – DHCP interface relay – DHCP VLAN relay ? DHCP L2 Relay |
| Advanced Features | ? Automatic Device Discovery ? Batch Configuration ? Batch Firmware Upgrading ? Intelligent Network Monitoring ? Abnormal Event Warnings ? Unified Configuration ? Reboot Schedule |
| MIBs | ? MIB II (RFC1213) ? Bridge MIB (RFC1493) ? P/Q-Bridge MIB (RFC2674) ? Radius Accounting Client MIB (RFC2620) ? Radius Authentication Client MIB (RFC2618) ? Remote Ping, Traceroute MIB (RFC2925) ? Support TP-Link private MIBs ? RMON MIB(RFC1757, rmon 1, 2, 3, 9) |
| Omada App | Yes, through ? Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) ? OC300 ? OC200 ? Omada Software Controller |
| Centralized Management | ? Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) ? Omada Hardware Controller OC300 ? Omada Hardware Controller OC200 ? Omada Software Controller |
| Cloud Access | Yes, through ? Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) ? OC300 ? OC200 ? Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4) |
| Management Features | ? Web-based GUI ? Command Line Interface (CLI) through console port, telnet ? SNMPv1/v2c/v3 – Trap/Inform – RMON (1, 2, 3, 9 groups) ? SDM Template ? DHCP/BOOTP Client ? 802.1ab LLDP/LLDP-MED ? DHCP AutoInstall ? Dual Image, Dual Configuration ? CPU Monitoring ? Cable Diagnostics ? EEE ? Password Recovery ? SNTP ? System Log |
| Certification | CE, FCC, RoHS |
| Package Contents | ? TL-SG3428MP Switch ? Power Cord ? Quick Installation Guide ? Rackmount Kit ? Rubber Feet |
| System Requirements | Microsoft? Windows? 98SE, NT, 2000, XP, Vista? or Windows 7/8/10/11, MAC? OS, NetWare?, UNIX? or Linux |
| Environment | ? Operating Temperature: 0?45 ? (32?113 ?); ? Storage Temperature: -40?70 ? (-40?158 ?) ? Operating Humidity: 10?90% RH non-condensing ? Storage Humidity: 5?90% RH non-condensing |
